maize milling machine

√In dry way

√ Excellent maize processing performance

√22 different sizes from half maize seed to maize flour

√Easy to operate

√Long service life and durability

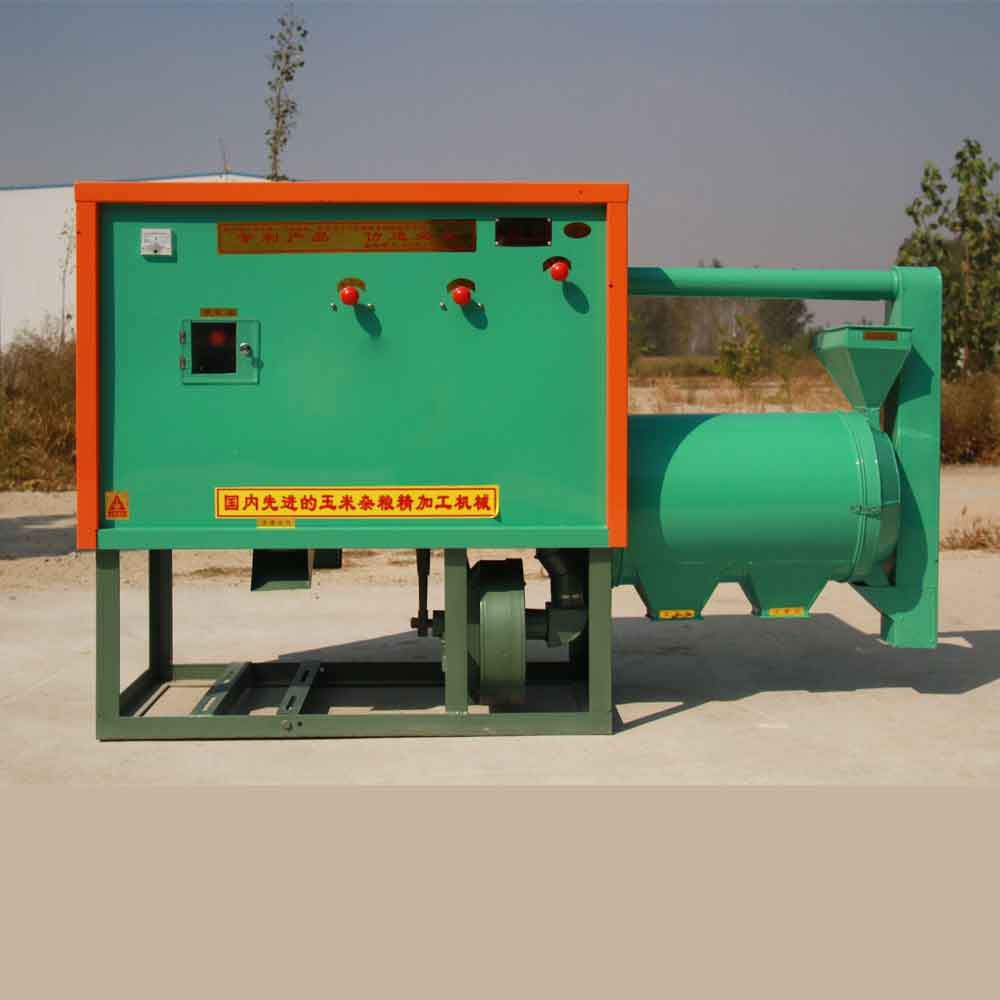

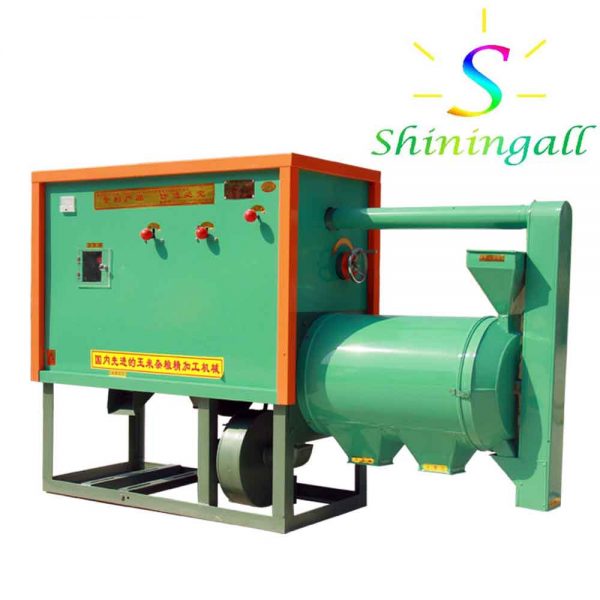

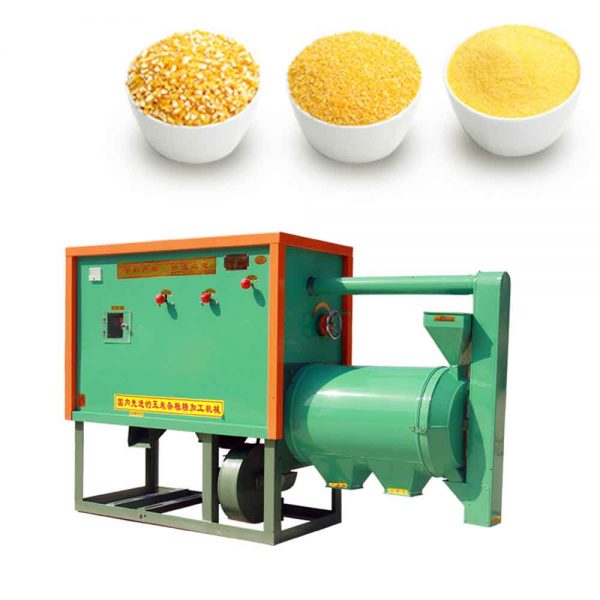

Maize Milling Machine 6FW-PD1

Maize Milling Machine 6FW-PD1 surface treatment adopts powder coating, the color is brighter, wear-resistant and durable. Final output product in 22 different sizes from half maize seed to maize flour.  It adopts dry peeling technology, and you just need to peel one time before milling. The effect of final classifying system is excellent. The final outputs after packing can access to supermarket directly. Please know more at below:

maize milling machine

Maize Milling Machine Main Details

-It is composed of peeling system, smashing system, and mesh system.

maize milling machine
maize milling machine

Operation process

  • Manually put the raw grain material in the peeling granary and grain come out after cleaning and peeling.
  • Turn a screw here to adjust the fineness of final grain output.
  • Turn the wheel left/right to adjust the size of the final product.
  • Pull out the knob and begin to mill grain into grits or flour as per customer’s request.
  • The final output will come out at three exits for different sizes.

Maize Milling Machine Main Parameters

Raw materialCorn, rice and wheat, barley,sorghum,etc.
Production capacityAbout 300~350KG/H
Motor power11kw-4p
Net weightAbout 360kg
Peeling performance rateAbout 98%

Working Video For Maize Milling Machine

This is the process of processing maize with the 6FW-PD1.
No special requirements for installation.
Install on the cement floor as much as possible, keep balance on the ground.

Final Products of Maize Milling Machine

maize milling machine


  •  Cleaning, peeling, removing corn germ, radicle and black hilum, smashing, classifying, polishing, and intensive selecting via mesh system. And can produce 22 sizes of maize grits.

Excellent maize processing performance

  • Output corn grits or flour can access to supermarkets directly. Provide the best maize for human food.

Machines For Maize Processing

corn peeler machine

Maize Peeling Machine

Process to peel off corn skins, germs, root, hiliums and others for better quality corn grits and flour. Peeling multiple grains.

seed cleaning machine

Maize Cleaning Machine

Is a combined automatic running machine to remove leaves, corn cobs, soils, stones pieces and other impurities from the corn seeds.

corn flour mill machine

Corn Flour Machine

Process to mill the peeled corn into very fine flours for human consumption or crush whole corn into corn meal for food or animal feed.

About Our Agents

Our products are exported to more than 55 countries around the world.

maize milling machine

We have many agents.
For example: India, South Africa, Italy, Nigeria, Ukraine.

"I met them in Canton Fair and visited their factory. We tested the machines in showroom. The machines work well and I like them. Now I am their distributor in Nigeria."
Nigria sale agent
Yusuf Musa
CEO, YKM Products

Contact Us

Maize Milling Machine 6FW-PD1 only need peel one time before milling. Investment projects with low investment, low risk, good benefits and broad prospects.
Email now for best machine quotation!

maize milling machine

Additional information


Peeling Rate




Overall Size




Price Range
