Grain Cleaning Machine

♥ Large Capacity Cleaning Machine ♥

♥ One Time Cleaning  ♥

♥ Multiple Usage ♥

♥ Compact Size ♥

♥ Competitive♥

Description

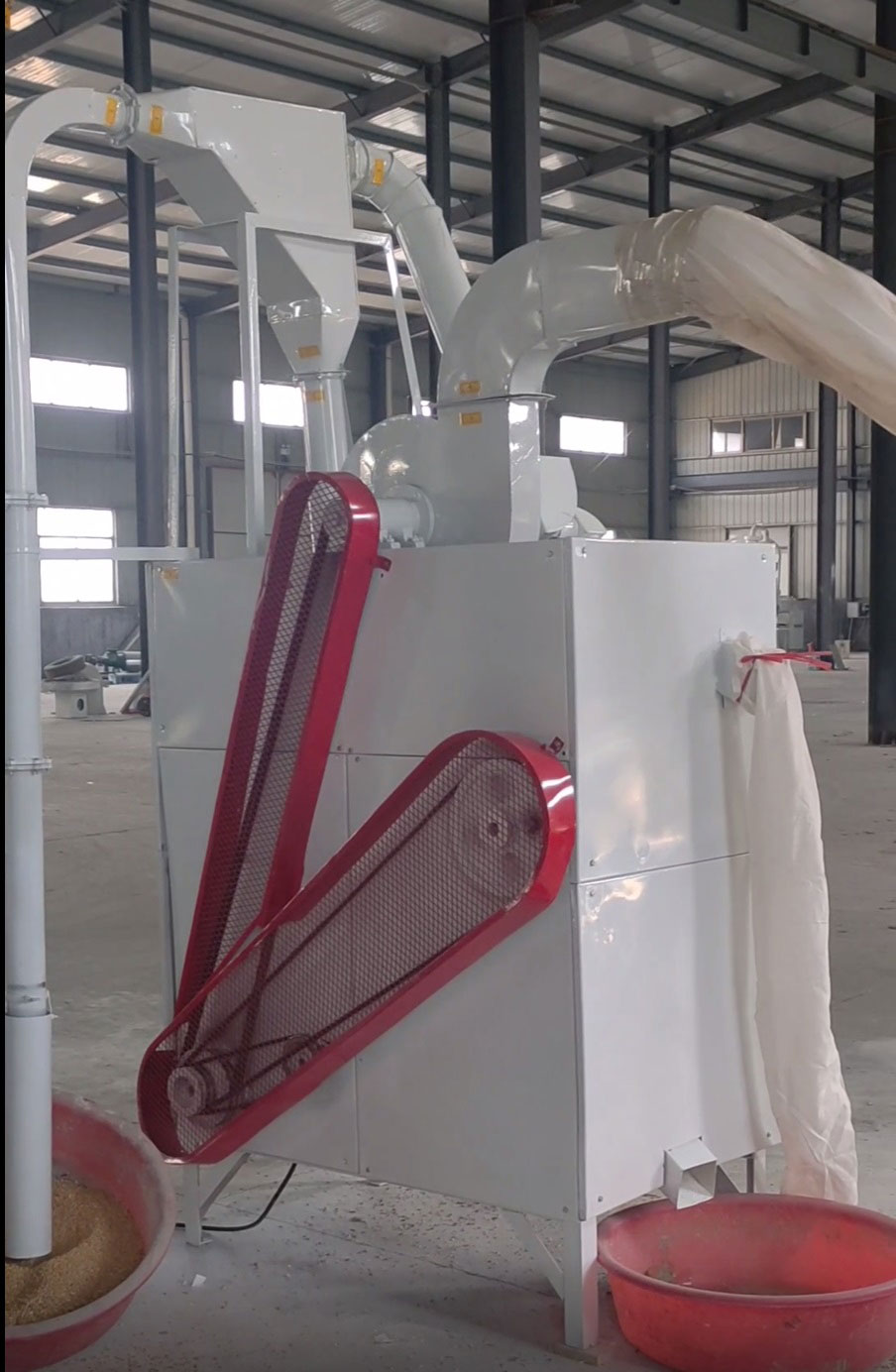

Grain Cleaning Machine

Grain Cleaning Machine 6FW-G24 is a large-capacity cleaning machine that can clean 1 ton of grain per hour. It can be used alone, or it can be used for the cleaning function of the production line. And this is a combined cleaning machine. Compared with single-function winnowing machines, stone removal machines, vibrating screens, etc., it has a small footprint, low energy consumption, multi-purpose machine, and higher cost performance.

1000kg per hour grain cleaning machine

Grain Cleaning Parameters

Model6FW-G24
Raw materialCorn, rice and wheat, barley,sorghum,etc.
Production capacity1000kg/h
Motor power5.5KW
Net weightAbout 380KG
Dimension1200*600*2400mm
Cleaning rateAbout 98%

Front View

front of bean cleaning machine

Back View

back of bean cleaning machine

Detailed Pictures

cleaning machine drawing

Drawing

Packing

Advantages of Grain Cleaner

  • almost the same size as G13 model, but with double capacity
  • with lower electricity consumption: 4kw 3 phase motor
  • combined cleaning to remove light, heavy, larger and smaller impurities together
  • multiple grain cleaning, such as corn, wheat, rice, sorghum, beans, etc
  • used as one machine or used into a processing plant
  • one machine to improve the product quality for selling

Video For Cleaning Machine

Machine working principle:
1,Light impurities are blown out by the wind;
2,Separation of heavy impurities through vibration;
3,Pass through a sieve to remove large and small impurities;
4,Through the strong magnet, absorb and remove iron impurities, etc.

Related Machines

corn peeling machine

Corn Peeling Machine

Process to peel off corn skins, germs, root, hiliums and others for better quality corn grits and flour. Peeling multiple grains

corn grits machine

Corn Grits Machine

Process to grind the peeled corn into large size corn girts, small size grits and little endosperm flour(starch). Proportion can be adjusted

corn flour machine

Corn Flour Machine

Process to mill the peeled corn into very fine flours for human consumption or crush whole corn into corn meal for food or animal feed

Cleaner Order Reference

somalia p12ab order

Machines packed and sent to Somalia, 6FW-P12AB which including Corn Cleaning Machine 6FW-G13

South Africa customer bought a rice flour processing line 6FW-P12A, including this cleaning machine as below:

south afric p12a
nigeria order reference

New order in 2020. Nigeria distributor bought 6FW-G13, 6FW-40 and 6FW-S18.  5 more units in the near future.

Contact Us

If you need grain cleaning machine, then buy it from our company. We are a professional manufacturer with more than 20 years of experience. The products have been exported to more than 60 countries around the world, and agents in many places can provide timely after-sales service. The products we produce are of good quality, favorable price and long service life, which is the best choice.

Know more about our products with below channels or contact us for more discount at left!

Additional information

Capacity

Power

5.5KW

Overall Size

1200*600*2400mm

Weight

380Kg

Price Range
