Description

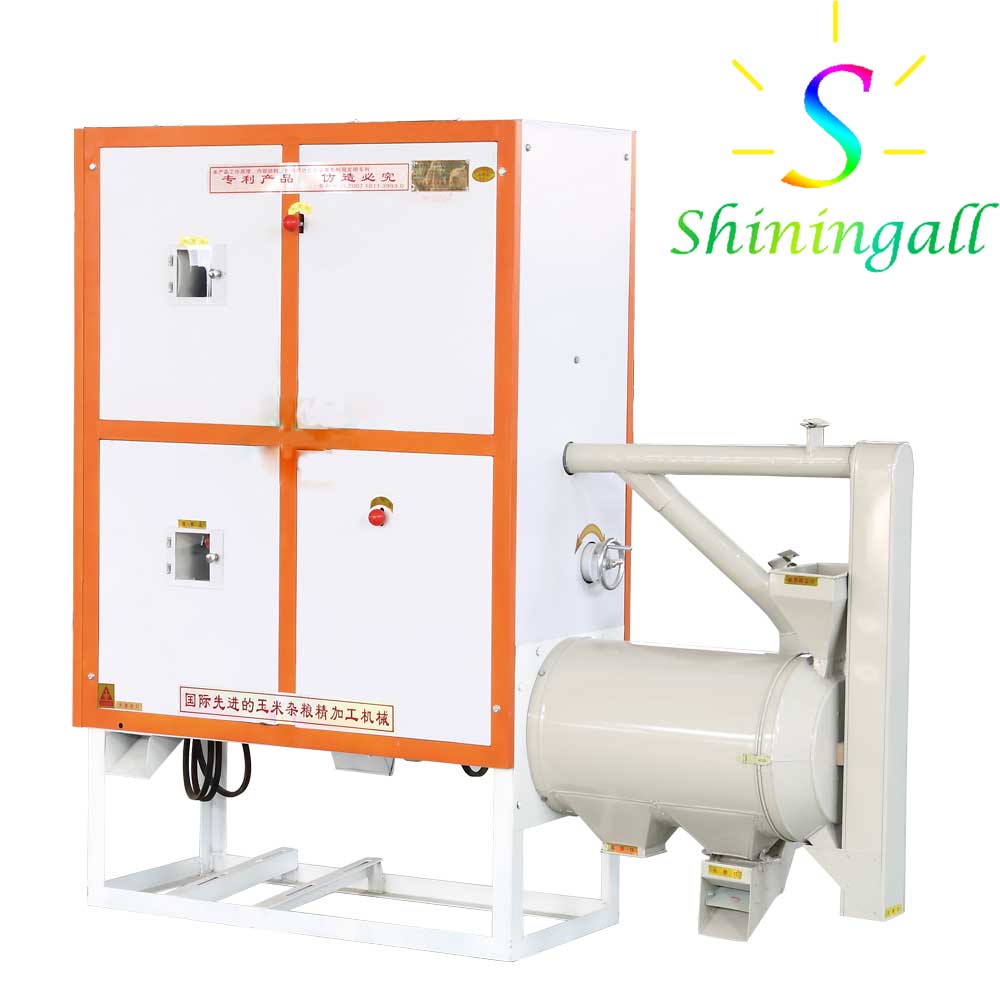

Grade 1 Maize Milling Machine 6FW-PD2
6FW-PD2 is our grade 1 maize milling machine. Mainly produce different size particle, and process 5% flour, after polishing the corn part. With all advantages of PD1 model, it adds one bark peeling machine with dry and wet application. Cleaning, peeling, crushing, polishing and sieve classifying into flour, grits as per customer’s different request. Excellent maize processing performance, output maize grits or flour can access to supermarkets directly. Please know more at below:
Maize Milling Machine Main Details

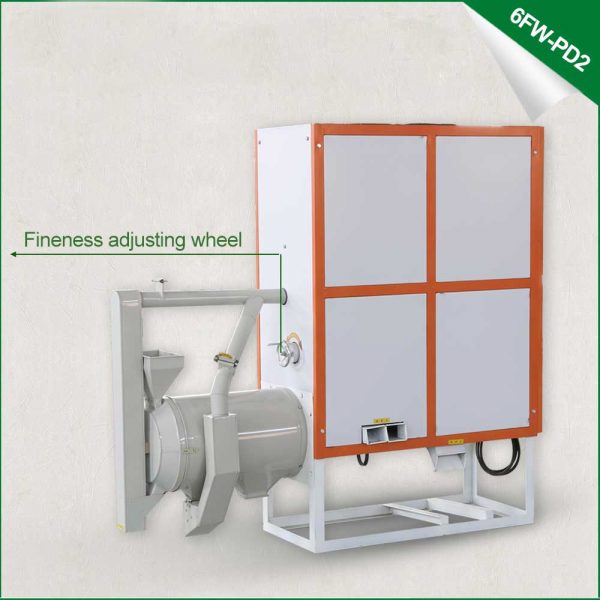

6FW-PD2 MAIZE GRITS MACHINE

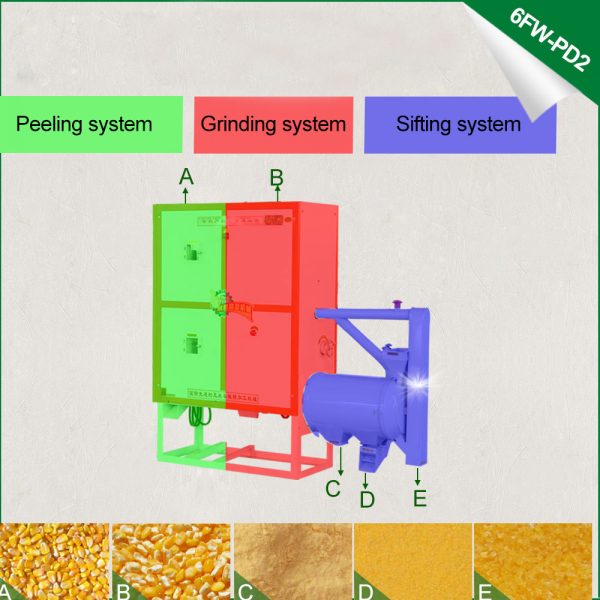

Main structure: This machine is composed of peeling system, sifting system, and grinding system.


Main Features
- By dry or wet way it mills corn seeds into grits and flour, represents the highest level of corn grinding technology.
- It is equipped with a peeling machine. Clean corn seed, peel corn skin, remove corn germ, root, hilum, smashing, mill corn grit & corn flour, mesh grading, and polishing.
- 6FW-PD2 can work together with a cleaning machine and a packing machine to make a line for producing corn grits.
Maize Milling Machine Main Parameters
Model | 6FW-PD2 |
Raw material | Corn, rice and wheat, barley,sorghum,etc. |
Production capacity | About400~500KG/H |
Motor power | 15kw-4p |
Net weight | About 400KG |
Dimension | 2500*1200*2500mm |
Peeling performance rate | About 98% |
Final Products of Maize Milling Machine
22 Different Sizes
- Peel maize seed skin, remove corn germ, root and hilum. Crush maize after peeling into different sizes of corn grit and flour.
- Meet demand for different markets. Machine adjustable to get corn grit/flour in 22 sizes from half corn seeds to corn flour.

Excellent Efficiency
- Peeling performance rate up to 98%, remove skin very well, and remove 100% black hilum.
- Excellent corn processing performance, output corn grits or flour can access to supermarkets directly.

Working Video For Maize Milling Machine
- This video is processing maize.
- Simple machine structure, easy operation, high efficiency but low energy cost.
Machines For Other Processing

CORN PEELING MACHINE
Process to peel off corn skins, germs, root, hiliums and others for better quality corn grits and flour. Peeling multiple grains.

GRAINS CLEANING MACHINE
Is a combined automatic running machine to remove leaves, corn cobs, soils, stones pieces and other impurities from the corn seeds.

FLOUR MILLING MACHINE LINE
It is composed of cleaning system, peeling system, grit milling system, flour milling system, dust control system, etc. All process goes automatically.
Shining's Certificate Patent
We already have 25 national invention patents, and 15 more are pending. We can design and manufacture a complete set of corn flour mills with a daily output of more than 500 tons. This is impossible for other factories.

- Industry-leading R&D capabilities;
- Excellent unique design and performance;
- Comply with ISO 9001 and CE standards;
- Constantly focus on research and innovation.
