flour grinding machine

 Mini flour mill plant √

 Reliable working performance √

Stable working √

Multifunctional √

High level of automation √


flour grinding machine

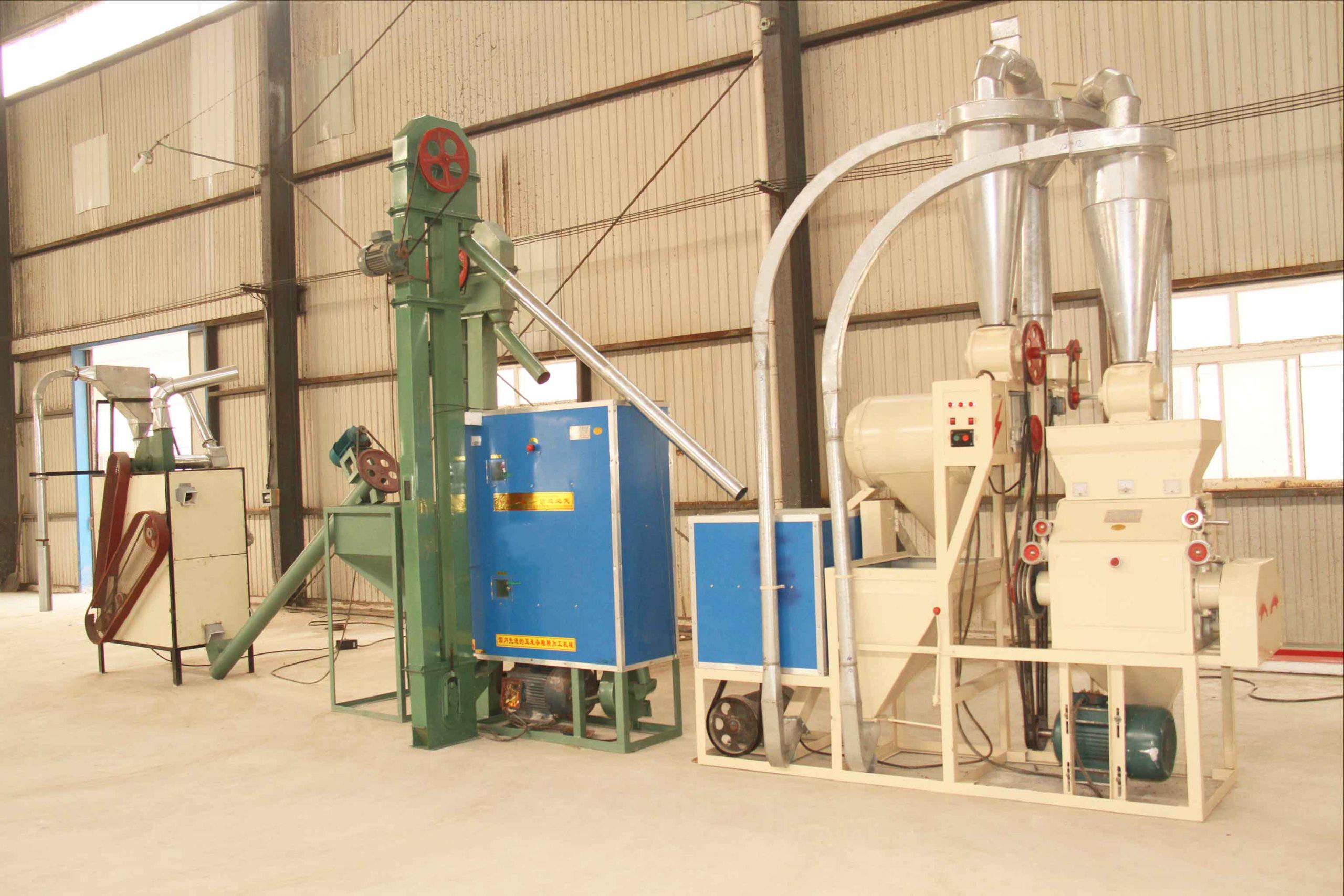

Flour Grinding Machine 6FW-12A

Flour Grinding Machine 6FW-12A. It is an automatic complete multiple flour making production line. Including Cleaning machine can clean corn or other grain seeds to remove stone, sand, metal, hull and al sorts of dirt. Peeling machine can remove the corn other grain skin, germ, root and hilum. Flour mill machine uses peeled corn or other grain into flour. This mini plant is one of the small capacity series, 12TPD. Can produce grits or flour. Please know more at below:

Flour Grinding Machine Main Parameters

Model6FW-12ANet weightAbout 1970 KG
Raw materialCorn, wheat, rice, beans and so onDimension8750*1700*4000mm
Production capacity12ton/dayWarranty1 year
Motor power35.6kwQualityHigh Equipment

Finished product of Flour Grinding Machine

flour grinding machine

(1) Combined Grain Cleaning Machine
Take in material automatically, wind selector, remove stone, remove iron or metal, and remove big, medium, small and minor dusts, wetting grain functions.

(2) Grains Peeling Machine
Dry way peel corn or other grain, remove skin, germ, hilum, and root one time.Great machine to match into 12ton/day grit/flour milling plant.

(3) Flour Milling Machine
Composed of a 50 type milling head and strong crushing machine, different mesh of flour from various cereal grains can be grinded. Adopt great milling hulls, and milling rollers. Adopt chain drive transmission system to saves energy and low maintenance with high efficiency.

Flour Grinding Machine Main Details

flour grinding machine

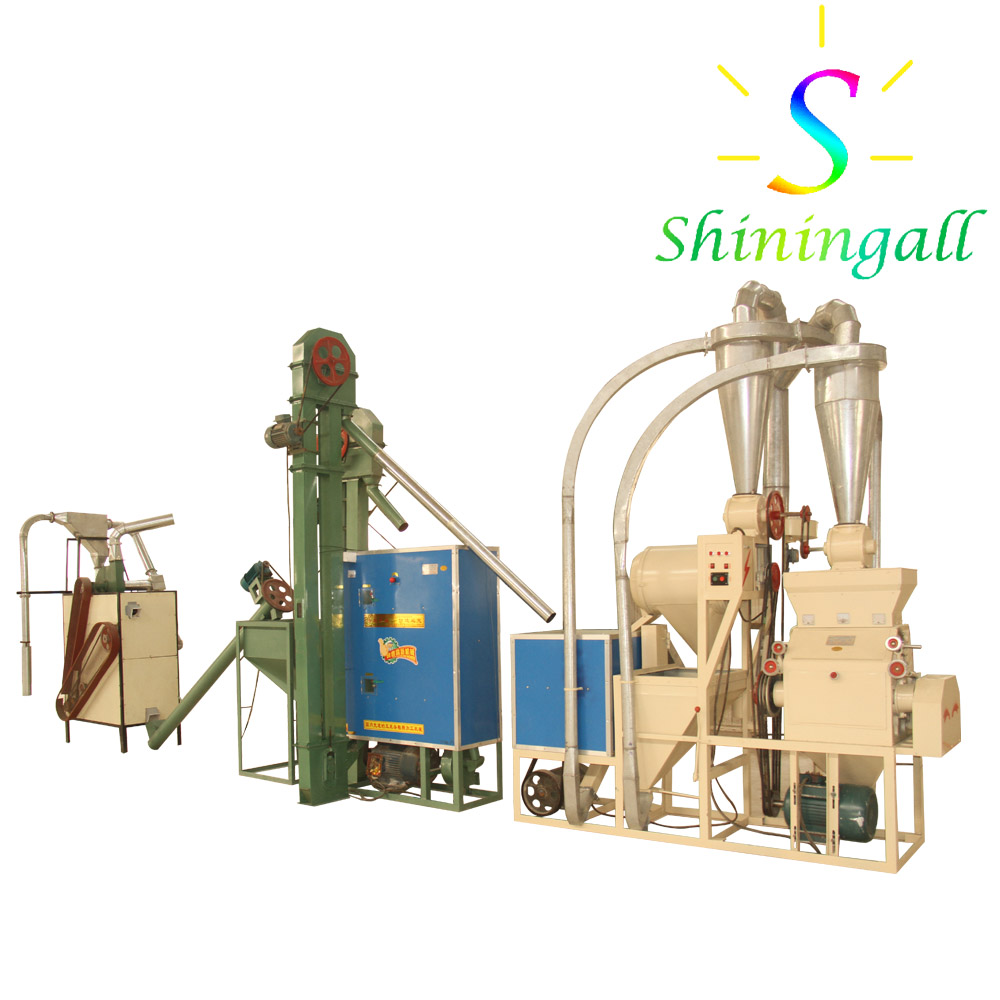

It is composed of cleaning equipment, net material conveying equipment, moistening granary, hoist, double peeling machine (dry or wet), 50-type flour milling machine, etc.

flour grinding machine

Main structure

  • Assemble the machine into an automated system to become a complete mini milling production line.
  • If disassemble mini plant , you can get optional way like this, the cleaning machine, peeling machine, conveyor, and the main flour mill machine can all work independently.
  • Multi-functional to mill corn, wheat, rice, cereals, beans, even it has been used to mill industrial, chemical, pharmaceutical particles
  • High level of automation, only requires one person to operate.

Working Video For Flour Grinding Machine

  • Space saving and energy saving. All machines are designed and produced for practical and economic purpose, which help get more profit for customers.

Machines For Other Processing

dry beans peeling machine

Beans Peeling Machine

Process to peel off beans skins, peel one time beans skin for better quality flour. Peeled whole side. Can peeling multiple grains.

seed cleaning machine

Grain Cleaning Machine

Is a combined automatic running machine to remove leaves, corn cobs, soils, stones pieces and other impurities from the corn seeds.

corn mill powder

Corn Grits Machine

Process to grind the peeled corn into large size corn girts, small size grits and little endosperm flour(starch). Proportion can be adjusted.

Shining's Certificate Patent

We already have 25 national invention patents, and 15 more are pending. We can design and manufacture a complete set of corn flour mills with a daily output of more than 500 tons. This is impossible for other factories.

Certificate patent
  •  Industry-leading R&D capabilities;
  • Excellent unique design and performance;
  • Comply with ISO 9001 and CE standards;
  • Constantly focus on research and innovation.

Contact Us

6FW-12A Flour Grinding Machine. It’s clear and simple structure, easy to operate, to install and maintenance.. Produce high-quality flour or grits.
We can design as your demand (production capacity, and quality…). If you are interesting in our products, pls tell me your contact information in our e-mail.
