Description
Corn Cleaning Machine 6FW-G13
Our Corn Cleaning Machine is a combined automatic running machine to remove leaves, corn cobs, soils, stones pieces and other impurities from the corn seeds. This is very necessary process to make the seeds clean and it protects the machines working in the following process, like dehusking / peeling and flour milling machine. Our 6FW-G13 is a Combined Cleaner with grading-sieve, gravity-sifting and wind-sifting system. Please know more at below:
Cleaner Main Parameters
| No. | Item | Value |
|---|---|---|
| 1 | Capacity | 400-500kg/h |
| 2 | Power | 4Kw-4P, Three Phase |
| 3 | Motor | Copper rotor |
| 4 | Machine Material | Steel |
| 5 | Surface | Painted or Powder coated |
| 6 | Overall Size | 1200*600*2400mm |
| 7 | Weight | 300kg |
| 8 | Warranty | 1 Year |

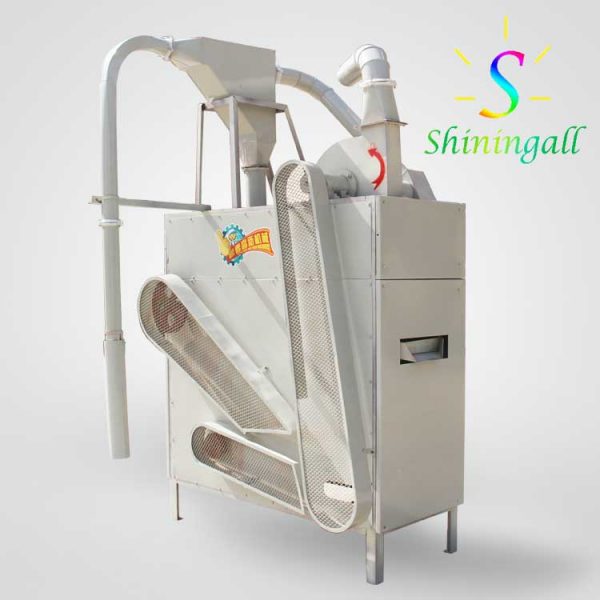

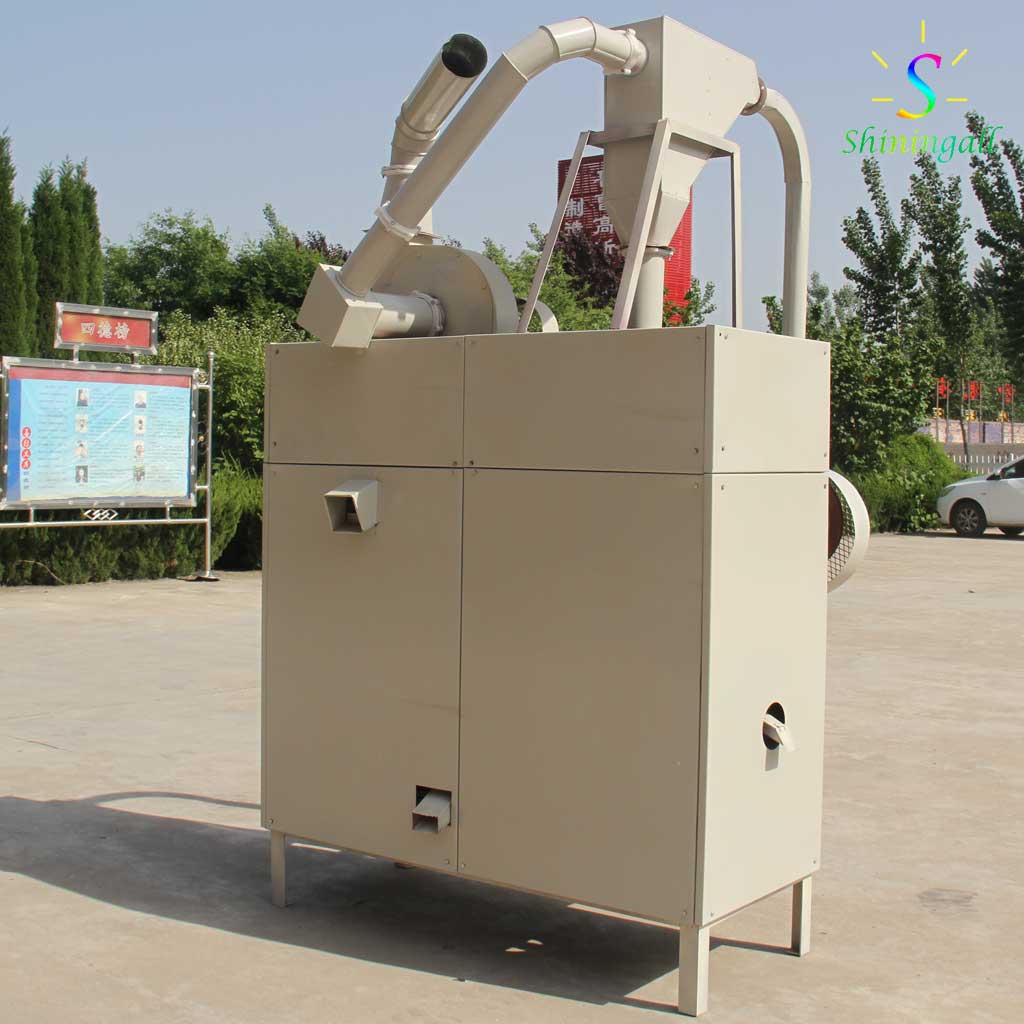

Front View

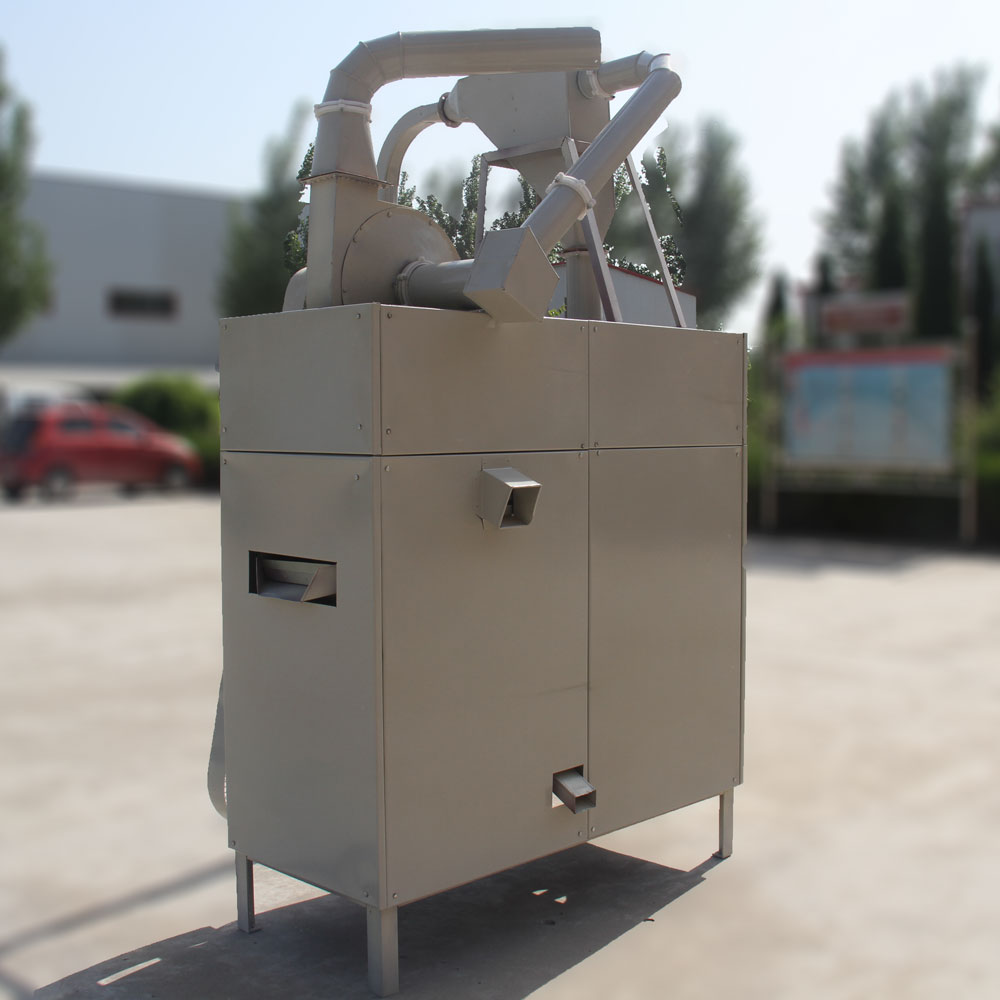

Back View

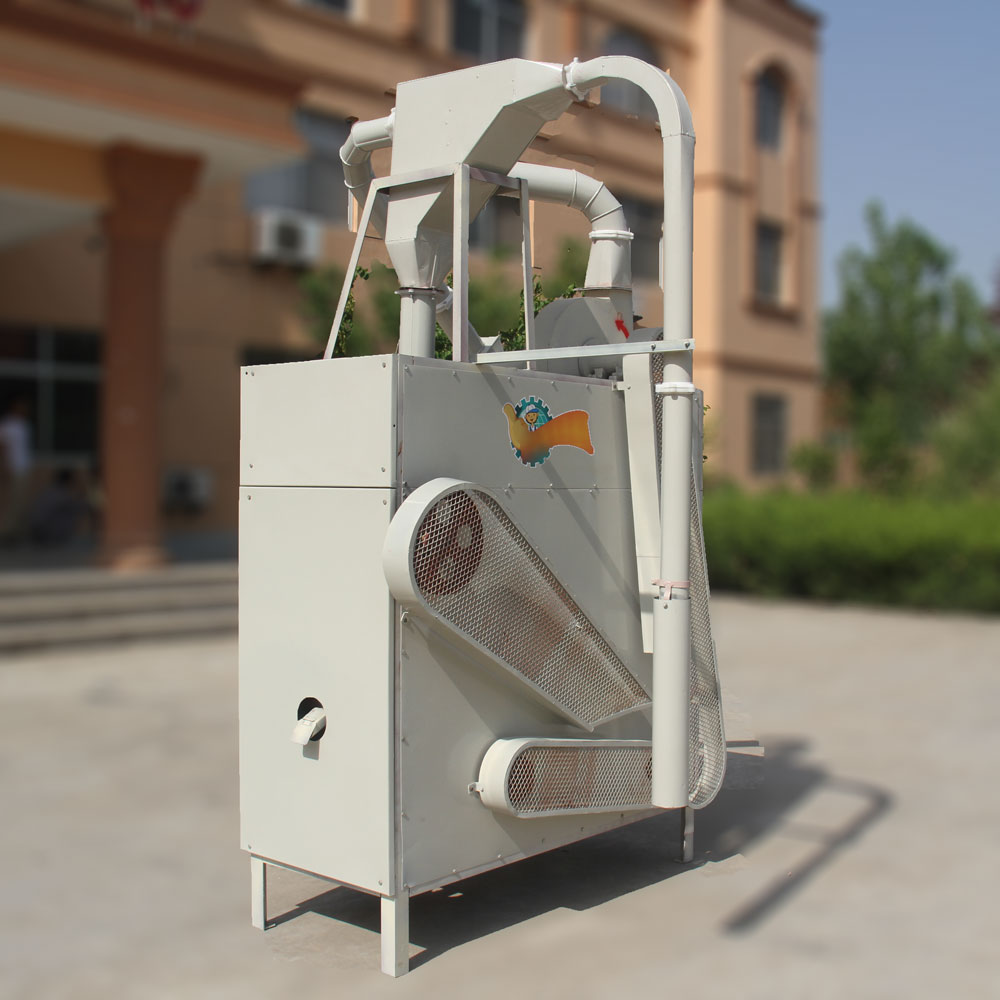

Detailed Pictures
Drawing
Packing
Cleaning Machine Advantages
1 Combined Functions:
- Grading: separate larger cobs and smller parts
- Cleaning: remove leaves, soil
- Destoner: remove stone and steel pieces
2 Efficient Cleaning:
Removing Silks, leaves, cobsstone or steel pieces and broken parts
in one-time cleaning
3 Automatic Running: Can be used as cleaning process in a large processing line.
4 High Quality: Advanced design, High grade steel materials, Standard produce process, Skilled workers, Strict test before shipping
5 Multifunctional Clean: Corn/Maize, Soybean, Peas, Chick Peas, Kidney Beans and other similar size grains
Working Video For Cleaning Corn
It is tested when one Somalia customer visiting our factory. They ordered a processing line to produce Corn Grits.
Machine Producing Process
Material Preparation
Order Confirmation
Cutting
Welding
Assembling
Testing
Packing
Deliverying
Machines For Corn Processing
Corn Peeling Machine
Process to peel off corn skins, germs, root, hiliums and others for better quality corn grits and flour. Peeling multiple grains
Corn Grits Machine
Process to grind the peeled corn into large size corn girts, small size grits and little endosperm flour(starch). Proportion can be adjusted
Corn Flour Machine
Process to mill the peeled corn into very fine flours for human consumption or crush whole corn into corn meal for food or animal feed
Order Reference
Machines packed and sent to Somalia, 6FW-P12AB which including Corn Cleaning Machine 6FW-G13
South Africa customer bought a rice flour processing line 6FW-P12A, including this cleaning machine as below:
New order in 2020. Nigeria distributor bought 6FW-G13, 6FW-40 and 6FW-S18. 5 more units in the near future.
Contact Us
This Corn Cleaning Machine 6FW-G13 is one of our popular products, which not only clean corn/maize but all the similar size grains and beans. Email now for best machine quotation!
